Wedge Wire Filters Baskets Wedge Wire Screen Cylinder Wedge Wire Resin Traps

Name: Wedge Wire Filters Baskets Wedge Wire Screen Cylinder Wedge Wire Resin Traps
Brand: KUNYA
Price: 22.78 USD

Quality Wedge Wire Filters Baskets Wedge Wire Screen Cylinder Wedge Wire Resin Traps for sale

Brand Name : KUNYA

Model Number : filter-13

Place of Origin : China

MOQ : 10 Pieces

Price : USD$22.78-USD$23.79

Payment Terms : T/T

Supply Ability : 500 pieces in one week

Delivery Time : 10 days

Packaging Details : Wooden Case

Contact Now

50-1000 micron Stainless Steel 316 316L 304 Wedge Wire Filter Slotted Tube Cylinder(Johnson Screen)

Wedge wire screen filter elements are made of stainless steel wedge wire screen.

Product Name	Stainless Steel Wedge Wire Filter Mesh
Product Name1	Johnson Screen
Technique	Wedge Wire
Slot size	20 to 800 micron
Size	customized
Filter media	SUS316L,304SS
Usage	Drilling Oil,Mining,Water Well,Seawater
Filtration direction	1.from outside to inside 2.from inside to outside

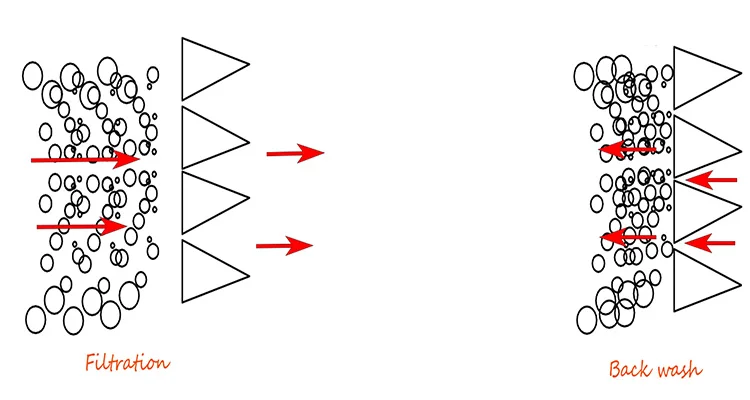

Filter rating is from 25 to 500 microns. Screens are made by wrapping and welding V-shaped wire on support rods creating slots which enlarge inwardly allowing only two contact points with the particles, thus preventing any risk of clogging and facilitating cleaning by reverse flow of backwash. They are classified into filter sheet, filter basket and filter elements. They have such characteristics as good strength, high rigidity ,
resistance to abrasion and corrosion, even gap, good in filtration and fluidity, easy to clean and back wash.
Application of the Johnson screen:
For Food industry: cartridge centrifuge insert
120℃ inclined grid for starch mills
For water treatment: water intake systems
resin traps
bow screens
distributor/ collector systems
For chemical industry: radial flow components
nozzles
supporting grids
distributor/ collector systems

Wedge Wire Filters Baskets Wedge Wire Screen Cylinder Wedge Wire Resin Traps Images
